Ohm C3

Specifications
Production Period
mid 1980's
Nationally Advertised Price
$895 per pair
Amplifiers Recommended
40 - 200W
Impedance (typical)
Frequency Response
37 - 20,000 Hz (+/-3dB)
Sensitivity @2.8 Volts
91 dB
Recommended Room Sizes
1600 - 4800 cu.ft.
Purchase Options Price Order
Woofer foam surround

The woofer is the largest driver in the system which covers the bass and mid-range frequency. So far, only foams have needed replacement. We need your old woofers back before we can send you the new ones. There will be an additional $250 charge if the old woofer is not returned.

$50 2
Low Tweeter

The low tweeter is generally the midsize driver in the system which covers the upper mid-range and low treble

$45
High Tweeter

The high tweeter is generally the smallest driver in the system which covers the highest frequencies.

$70 1
Grill
The grill is the cloth and frame used to cosmetically conceal the drivers without affecting the sound. Ohm now uses black grills in almost all cases. In the past, brown and brown/black mixes were used; but every ”brown” turned out differently. Now they are all black (except on some current white speakers, we have white as an option).
$35
Crossover
The crossover is the electrical circuit that protects the tweeters from the low frequency energy that is reproduced by the main drivers. This can only fail, in rare instances, from overdriving the speakers.
$55 3
(1) With the return of the original part for recycling within 60 days.
(2) With the return of the original part for recycling before the shipment of the new part.
(3) Recycled, repaired and tested.
(4) Per pair.

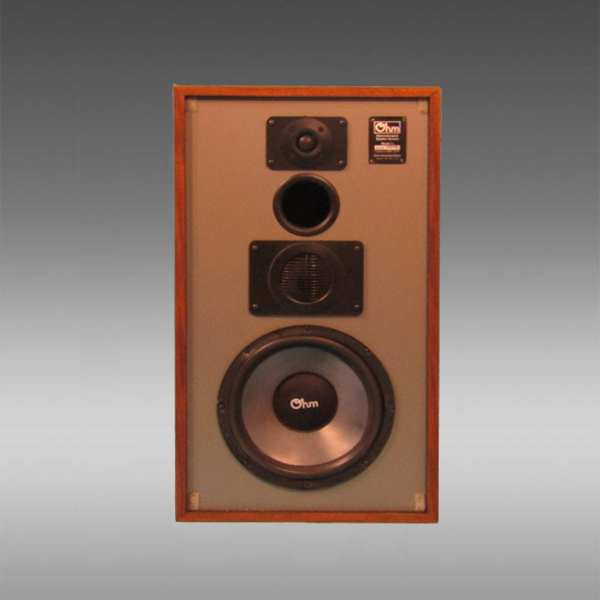

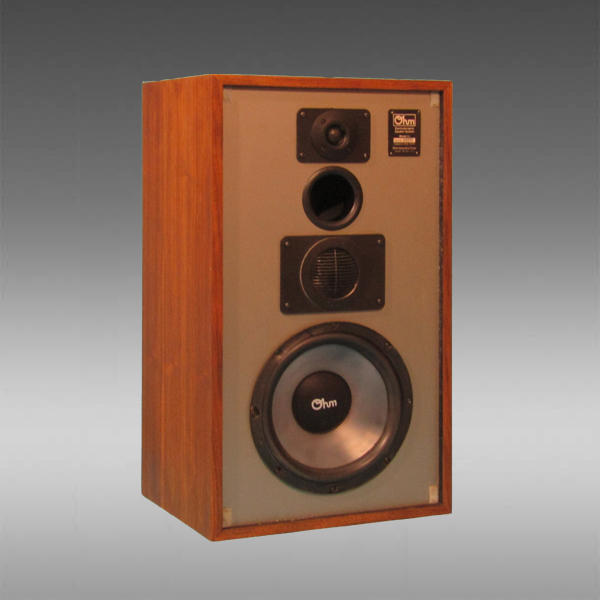

The C3 was the last of the large bookshelf speakers with a 10” vented woofer and two tweeters. This system used a slightly larger cabinet than prior models in the C series. It was more sensitive and could fill large rooms. The tweeters were in a vertical line and sounded nearly time aligned when listening directly in front of the woofer for an extremely transparent sound.

New foam surrounds which are projected to last up to 30 years can be factory installed when you return your C3s to us for a charge of $50 each.

Note: Most Ohm upgrades require no specialized knowledge and are easily completed completed by any person. It takes less time to install your own upgrade than it does to package and return ship your speakers to the factory, therefore, we recommend you save time and money by doing this yourself. We ship the upgrade to your door with clear, easy instructions. If for any reason you prefer to have the factory complete your upgrade installation, we will be happy to do this for free, however, you will be responsible for shipping and handling costs each way.

Ohm allows up to $895 for the return of a complete undamaged pair of Ohm C3s toward 25% of the purchase price of new Ohm speakers.
